307-02A Transmission Cooling - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 07/23/2013

Transmission Fluid Cooler Tubes

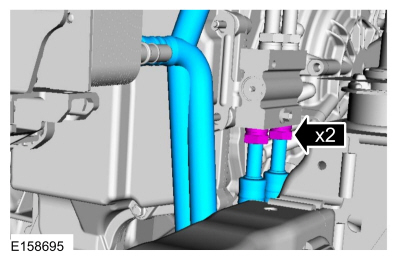

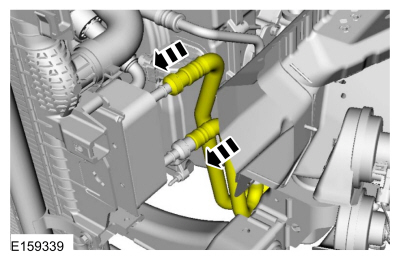

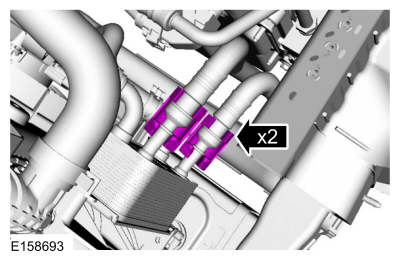

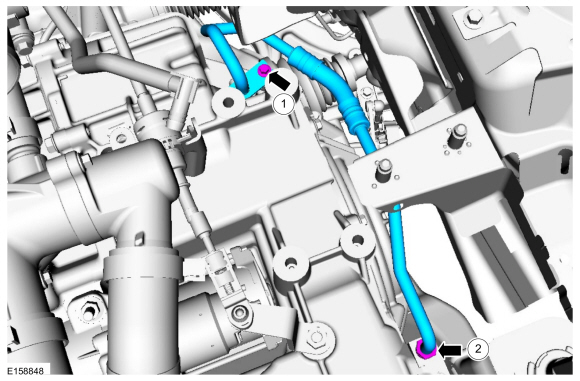

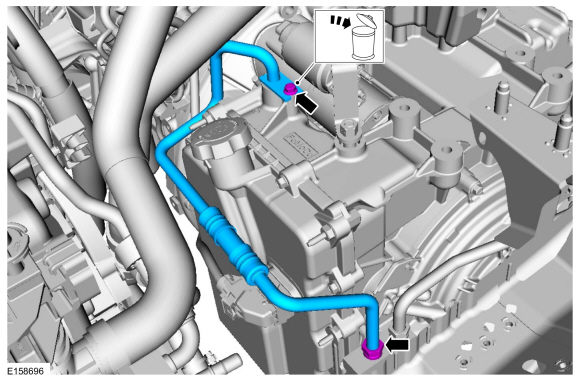

Removal

  1. Refer to: Transmission Support Insulator - Vehicles Built From: 20-May-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
    Refer to: Transmission Support Insulator - Vehicles Built Up To: 03-June-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).

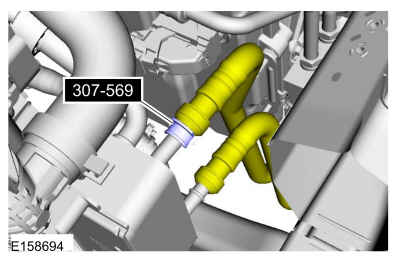

  1. Special Tool(s) : 307-569 Disconnect Tool TOC Line (1/2)

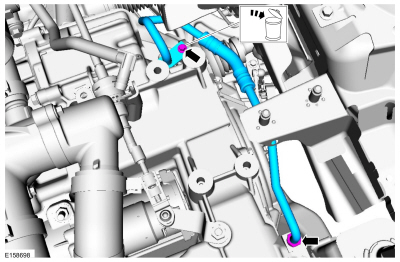

Installation

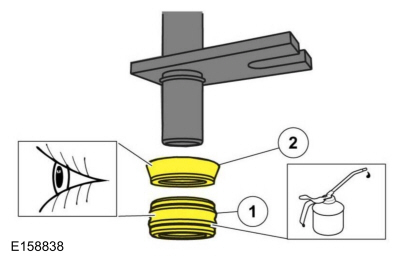

    1. Seal (7D258)
      Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )

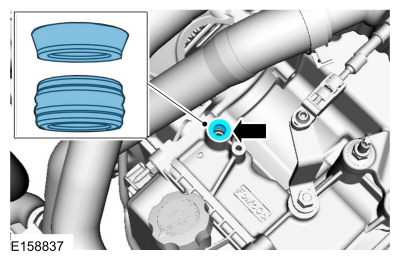

    1. Backing ring (7J324)

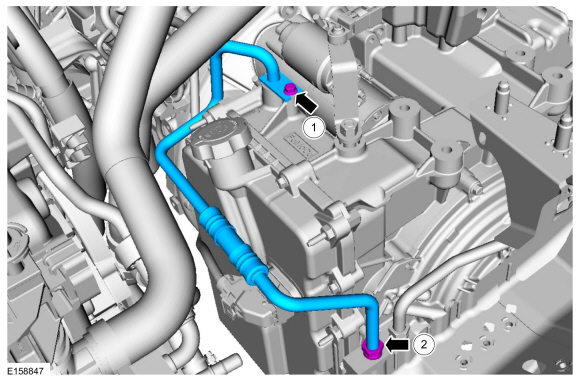

    1. Torque : 11 Nm
    1. Torque : 30 Nm
    1. Seal (7D258)
      Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )

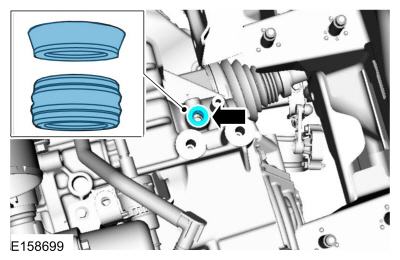

    1. Backing ring (7J324)
    1. Torque : 11 Nm
    1. Torque : 30 Nm
  1. Torque : 30 Nm
  1. Refer to: Transmission Support Insulator - Vehicles Built From: 20-May-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
    Refer to: Transmission Support Insulator - Vehicles Built Up To: 03-June-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
  1. Refer to: Transmission Fluid Level Check (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, General Procedures).
