Front Suspension Height Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

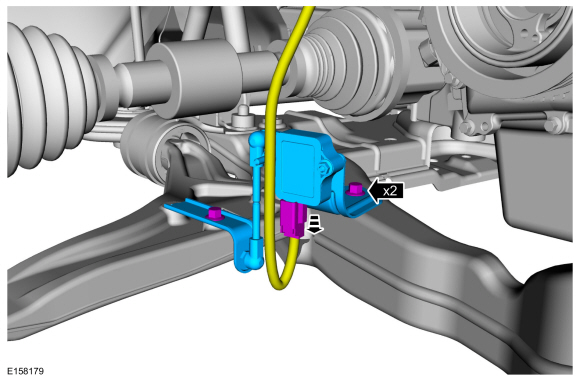

1. NOTE: RH height sensor assembly shown, LH similar.

   Torque : 20 Nm

Installation

1. NOTE: The RH and LH height sensor assemblies cannot be used on opposite sides of the vehicle.

   To install, reverse the removal procedure.


1. Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
