204-05 Vehicle Dynamic Suspension 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 09/11/2012

Vehicle Dynamics Control Module (VDM)

Removal

NOTICE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

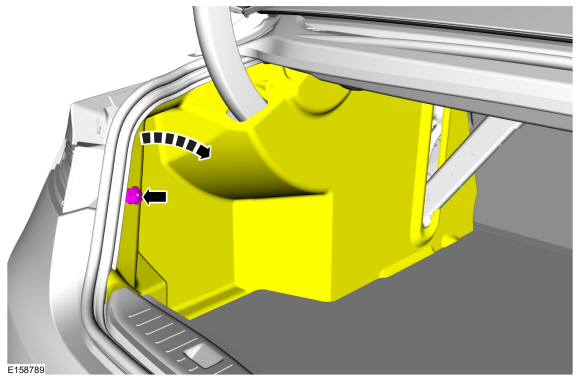

  1. NOTE: The VDM is mounted to the LH side of the luggage compartment behind the luggage compartment side trim panel.

  1. Torque : 1.5 Nm

Installation

  1. To install, reverse the removal procedure.
  1. Calibrate the VDM . Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
