307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50	2013 - 2014 MKZ
Diagnosis and Testing	Procedure revision date: 09/28/2012

Low One-Way Clutch Assembly

Low One Way Clutch

For Low One-Way Clutch (OWC) operation,
REFER to: Low One-Way Clutch Assembly (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Description and Operation).

NOTICE: Do not clean in water or with water-based solvents. Damage to the component may occur.

NOTE: The Low One-Way Clutch (OWC) cannot be disassembled.

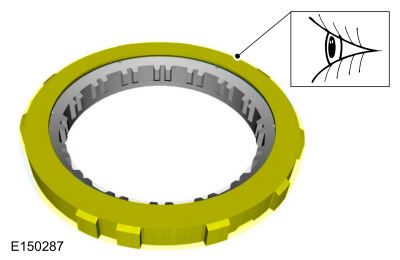

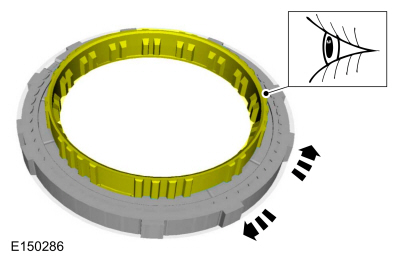

Clean and inspect the low one way clutch for cracks and damaged splines. The internal splined section should rotate counterclockwise and lock when rotated clockwise. Check for burned or excessively worn surface. If any damage is found or the clutch does not rotate or lock, INSTALL a new Low One-Way Clutch (OWC).
REFER to: Transmission (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Disassembly).
