Steering Gear

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. If installing a new steering gear, upload the PSCM configuration to the scan tool.
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).

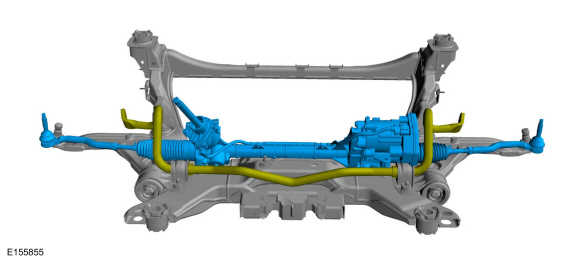

1. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

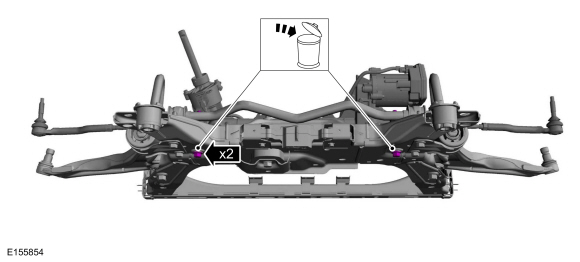

1. Torque : 200 Nm

Installation

1. To install, reverse the removal procedure.


1. If a new steering gear was installed, download the PSCM configuration from the scan tool to the new PSCM .
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).
