307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Disassembly and Assembly of Subassemblies Procedure revision date: 08/7/2013

Differential

DISASSEMBLY

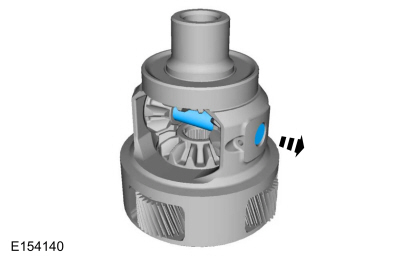

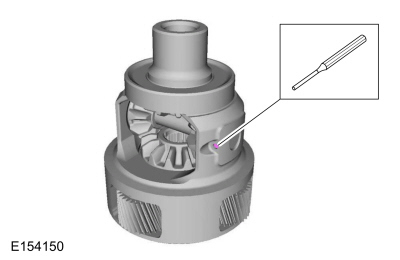

  1. General Equipment : Punch

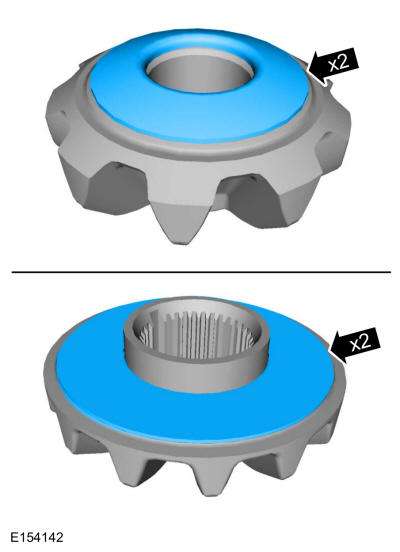

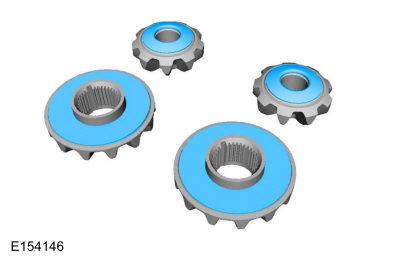

  1. NOTICE: Do not mix the washers from the side or spider gears. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

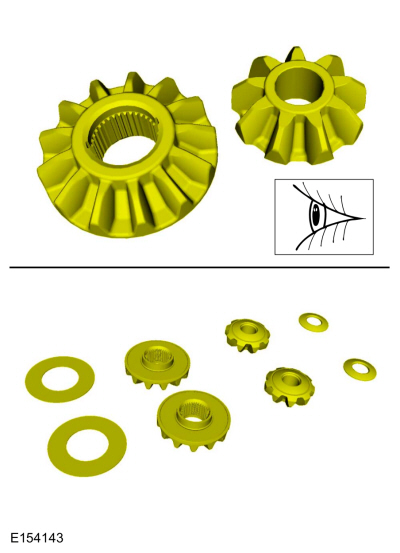

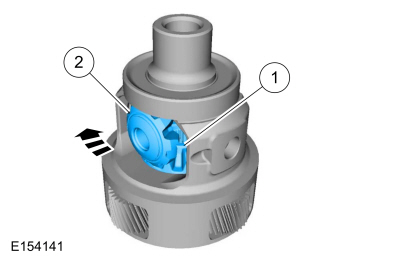

    1. Side gear

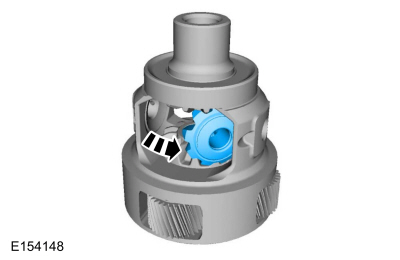

    1. Spider gear

ASSEMBLY

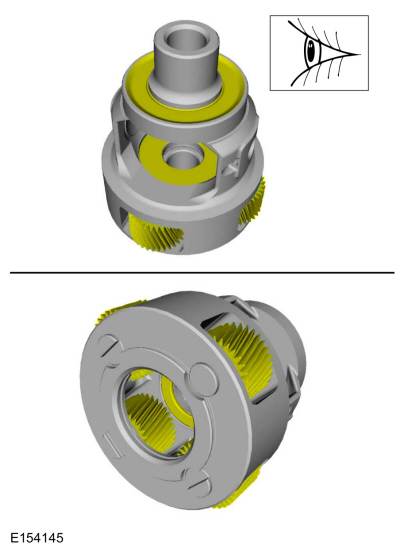

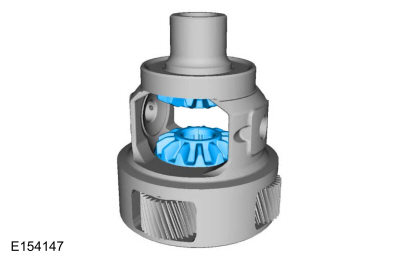

  1. Check that bearings spin freely and do not move back and forth or side to side excessively.

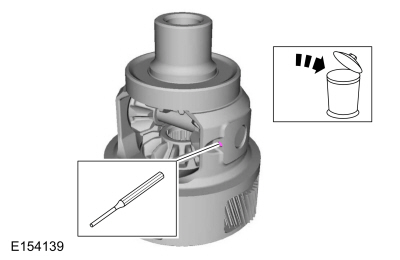

  1. General Equipment : Punch
