307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Disassembly and Assembly of Subassemblies Procedure revision date: 08/7/2013

Transmission Case

DISASSEMBLY

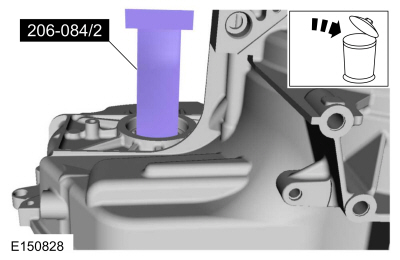

  1. NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

    Special Tool(s) : 206-084 Installer, Wheel Speed Sensor Ring
    General Equipment : Hydraulic Press

ASSEMBLY

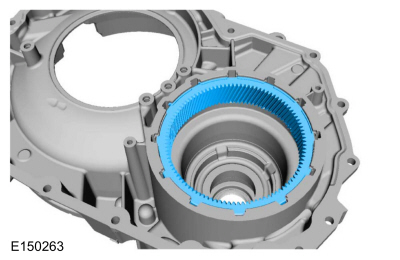

  1. NOTICE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transmission.

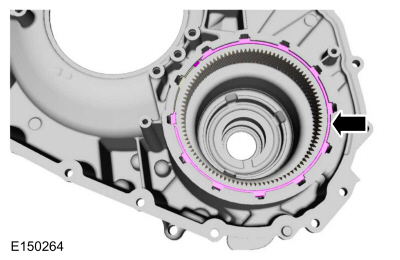

  1. NOTE: Make sure the snap ring is seated in the groove.

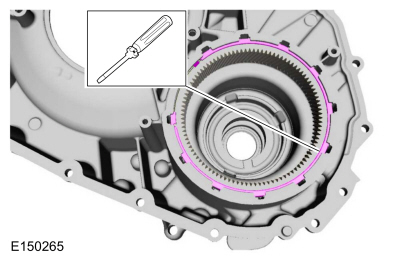

    General Equipment : Flat Headed Screw Driver

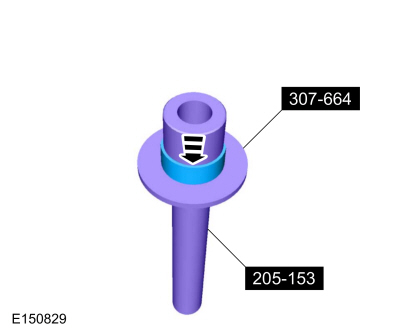

  1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-664 Case Bushing Installer

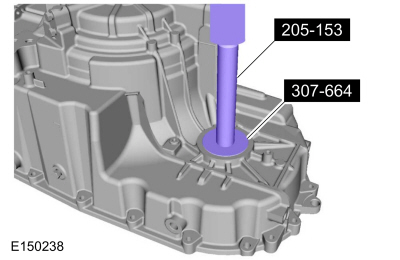

  1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-664 Case Bushing Installer
    General Equipment : Hydraulic Press
