501-19 Bumpers 2013 - 2014 MKZ
Disassembly and Assembly Procedure revision date: 08/12/2013

Rear Bumper Cover

DISASSEMBLY

NOTE: Disassembly steps in this procedure may contain assembly details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

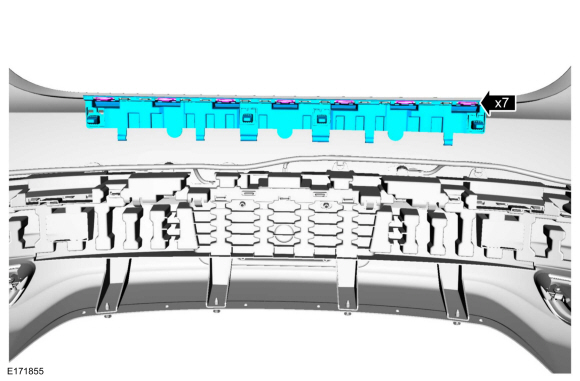

  1. In six locations.

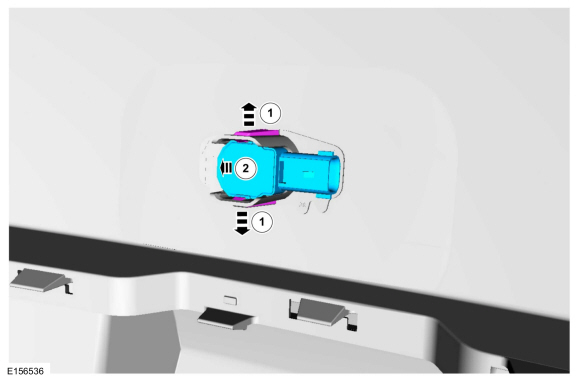

  1. On each side.
  1. On each side.
  1. On each side.

ASSEMBLY

  1. To assemble, reverse the disassembly procedure.
