Front Bumper Cover

DISASSEMBLY

NOTE: Disassembly steps in this procedure may contain assembly details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).


 A video version of this procedure is available on-line.

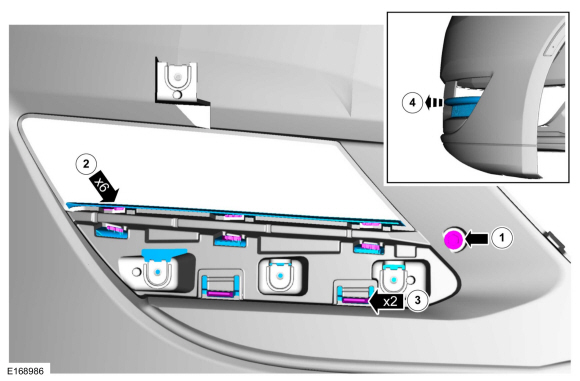

1. NOTE: On each side

   • Release the headlamp to grille opening panel alignment pin.

   • Push the headlamp toward the bottom of the front bumper fascia to release the outboard clip.

   • Rotate the headlamp assembly toward the center of the front bumper fascia and down toward the bottom of the fascia to release the inboard clip.

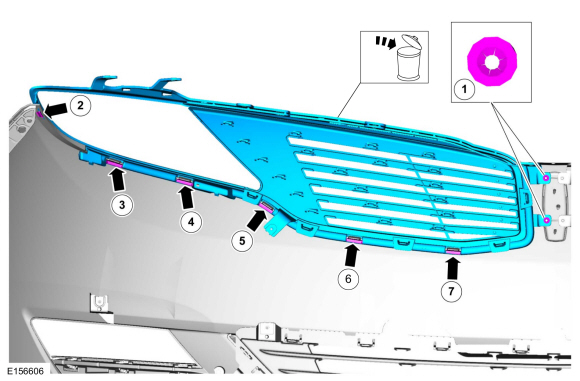

1. On each side.

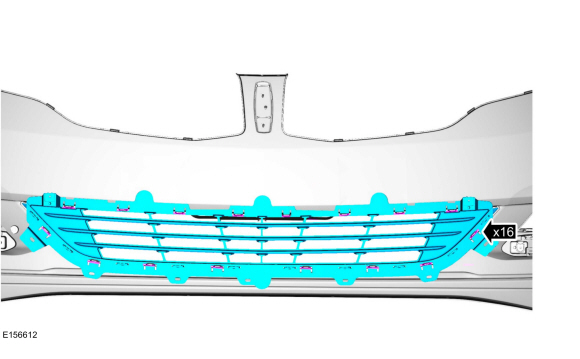

1. On each side.

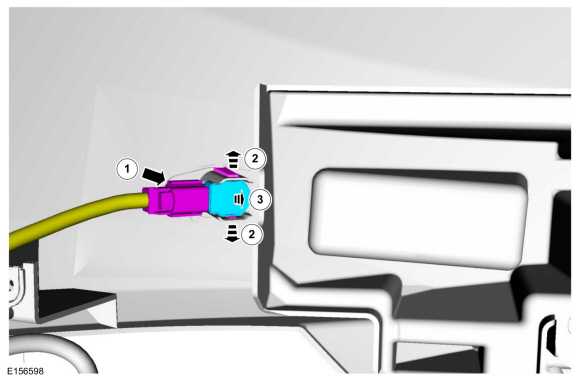

1. On each side.

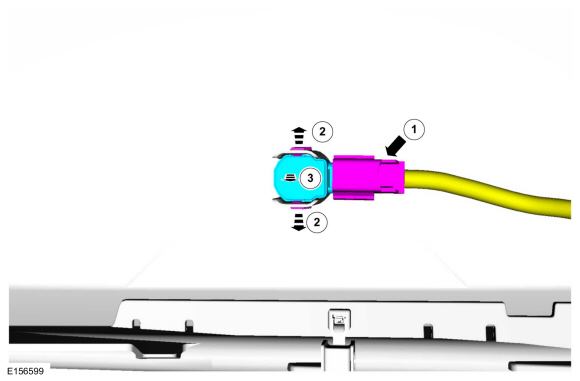

1. On each side.


1. Remove the front bumper cover wiring harness.

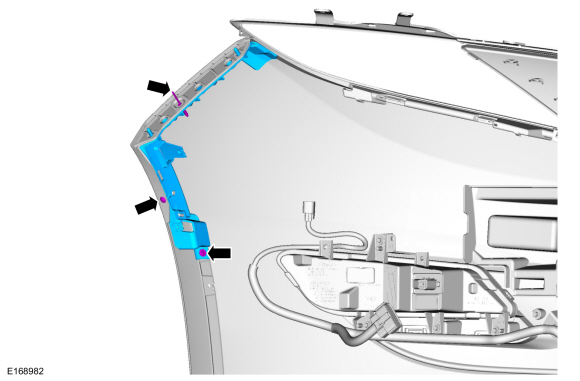

1. On each side.

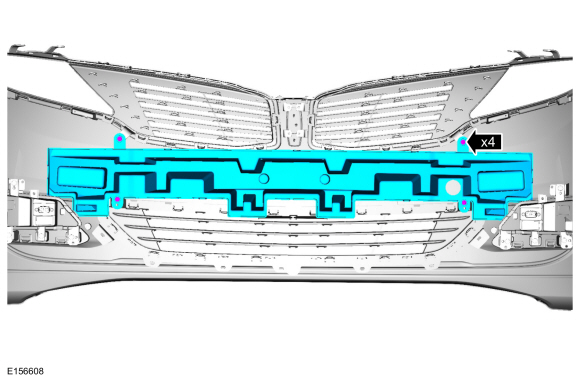

1. On each side.

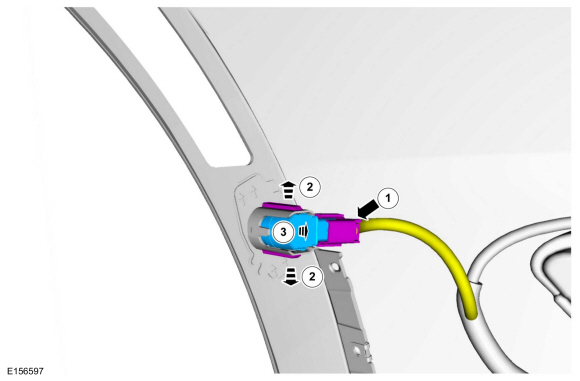

1. On each side.


ASSEMBLY

1. To assemble, reverse the disassembly procedure.
