Side Obstacle Detection Control Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

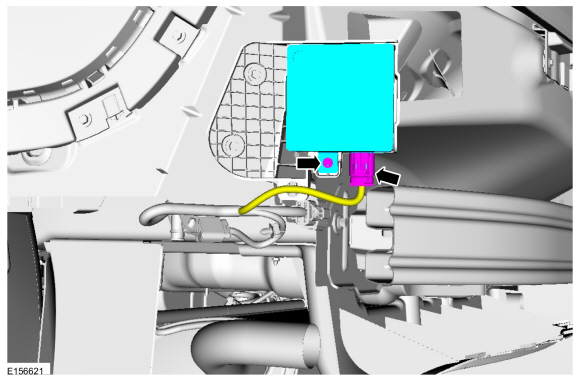

NOTE: The LH side is shown, the RH side is similar.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

   Upload the module configuration information from the SODL and SODR into the diagnostic scan tool by following the diagnostic scan tool on screen instructions. For additional information,
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).


1. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

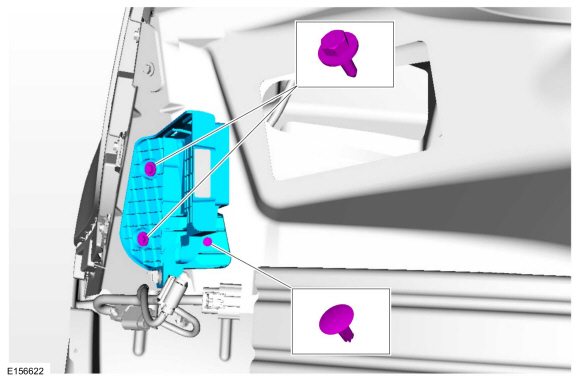

1. If required.


Installation

1. To install, reverse the removal procedure.


1. Using the previous diagnostic scan tool session, carry out the Programmable Module Installation (PMI) procedure for the SODL and SODR .
