Cruise Control Module (CCM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).


1. Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).

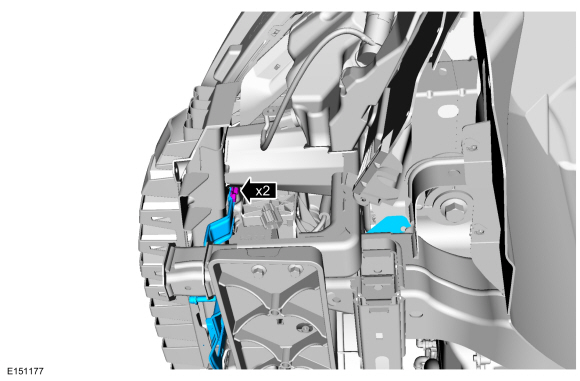

1. Torque : 27 Nm

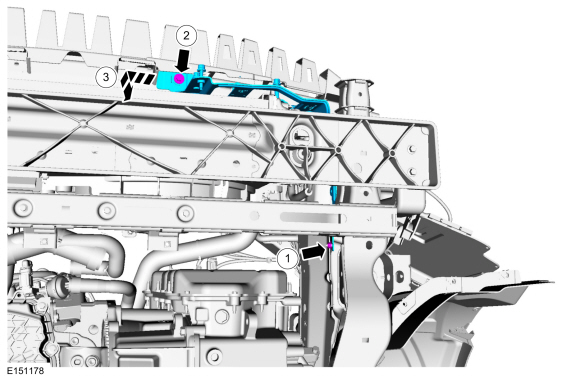

1. Torque : 9 Nm

Installation

1. To install, reverse the removal procedure.


1. Align the cruise control module.
   Refer to: Cruise Control Radar Alignment (419-03A Cruise Control, General Procedures).
