Headlamp Assembly

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The procedure for the LH headlamp assembly is shown, the RH headlamp assembly is similar.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).


 A video version of this procedure is available on-line.

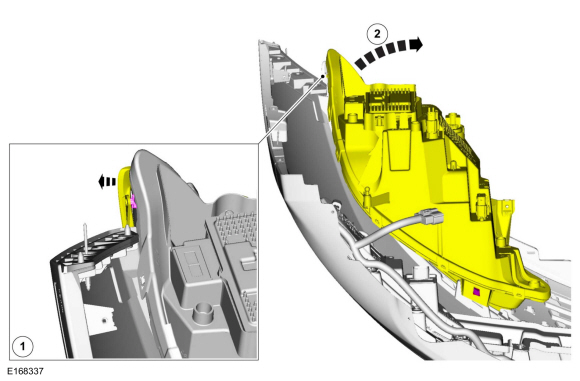

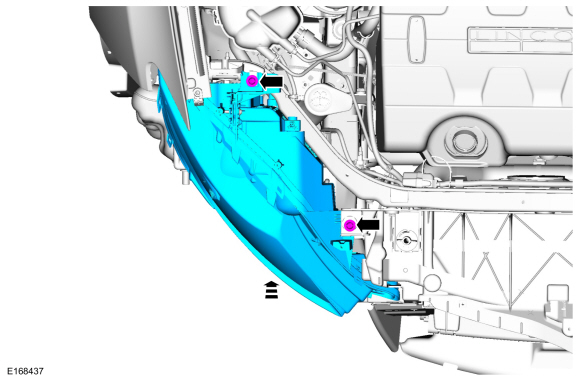

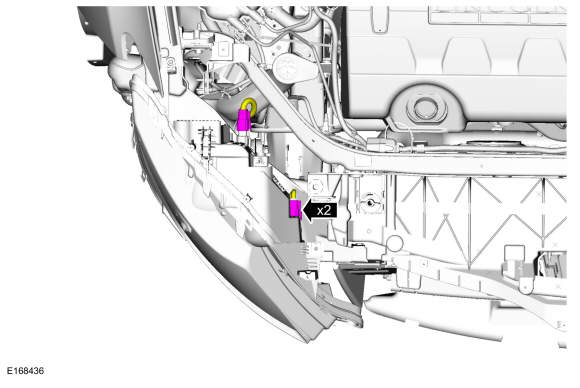

1. • Release the headlamp to grille opening panel alignment pin.

   • Push the headlamp toward the bottom of the front bumper fascia to release the outboard clip.

   • Rotate the headlamp assembly toward the center of the front bumper fascia and down toward the bottom of the fascia to release the inboard clip.


Installation

1. • Install the headlamp and engage the ballstud.

   • Loosely install the headlamp screws.


1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
