Solenoid Body

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

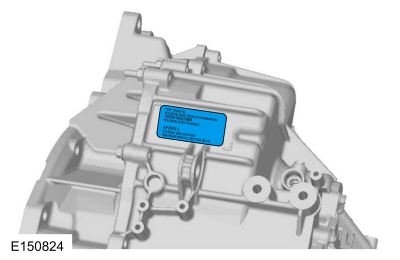

NOTE: The PCM must be updated with a new solenoid body strategy data file and solenoid body identification anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Main Control Cover (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).


1. Slide the TR sensor electrical connector lock tab over.


1. NOTICE: Handle the solenoid body with care or damage to the solenoid body may occur.

Installation

1. NOTICE: Make sure not to pinch the TSS , OSS or TR sensor wiring harnesses when positioning the solenoid body in place.

   NOTE:

   • Hand-tighten bolts.
   1. Bolt
      Distance : 1.654  in ( 42  mm)
   2. Bolt
      Distance : 2.480  in ( 63  mm)
   3. Bolt
      Distance : 3.150  in ( 80  mm)
   4. Bolt
      Distance : 3.740  in ( 95  mm)

1. Torque : 12 Nm

1. Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.


1. Refer to: Main Control Cover (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).


1. Wipe the surface of the existing solenoid body strategy tag on top of the transmission case clean and install the new solenoid body strategy tag (supplied with the solenoid body service kit) over it.


1. Refer to: Solenoid Body (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
