307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 09/27/2012

Main Control Valve Body

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Main Control Cover (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).

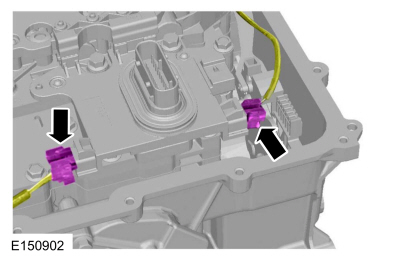

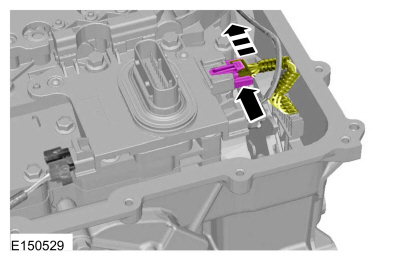

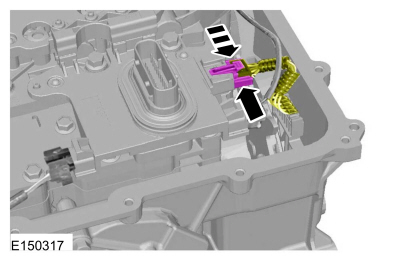

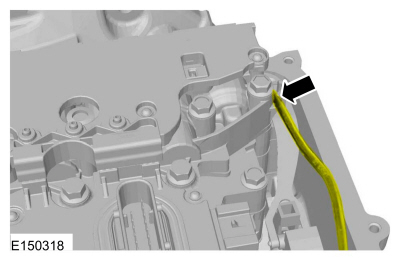

  1. Slide the TR sensor electrical connector lock tab over.

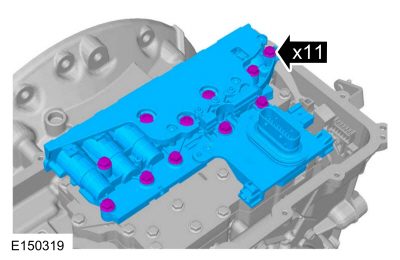

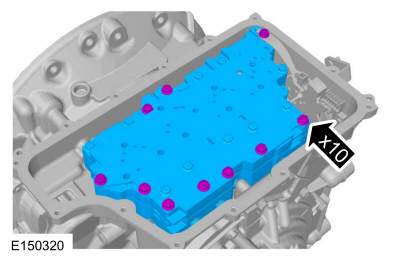

  1. NOTICE: Handle the solenoid body with care or damage to the solenoid body may occur.

Installation

  1. NOTICE: Be careful not to pinch the TSS , OSS or TR sensor wiring harnesses under the valve body, or damage to the wiring harness or connectors may occur.

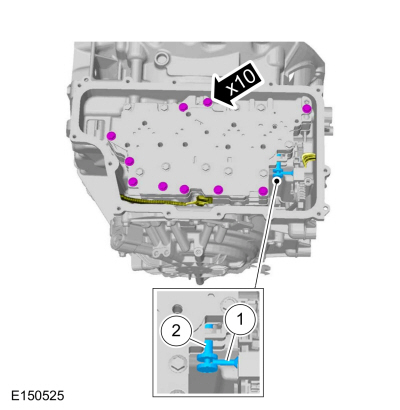

    NOTE: Make sure that the manual control lever pin (part of the TR sensor) is correctly installed in the manual control valve.

    NOTE:

    1. Manual pin.
    1. Manual valve.

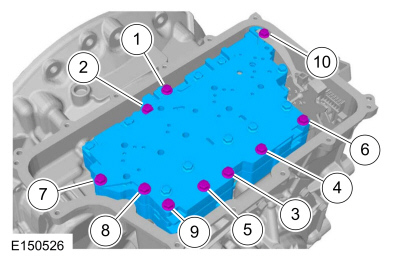

  1. Torque : 12 Nm

  1. NOTICE: Make sure not to pinch the TSS , OSS or TR sensor wiring harnesses when positioning the solenoid body in place.

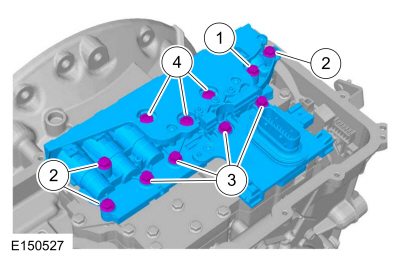

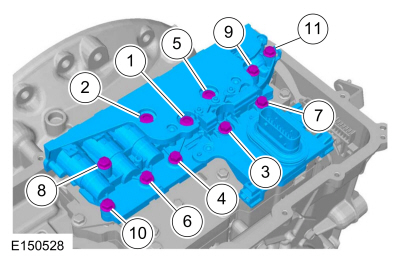

    NOTE:

    1. Bolt
      Distance : 1.654  in ( 42  mm)
    1. Bolt
      Distance : 2.480  in ( 63  mm)
    1. Bolt
      Distance : 3.150  in ( 80  mm)
    1. Bolt
      Distance : 3.740  in ( 95  mm)
  1. Torque : 12 Nm
  1. Connect the TR sensor electrical connector and slide the lock tab to the LOCK position.
  1. Refer to: Main Control Cover (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
  1. Refer to: Selector Lever Cable Adjustment (307-05B Automatic Transmission External Controls - Vehicles With: 6-Speed Automatic Transmission - 6F35, General Procedures).
  1. If a replacement transmission assembly is being installed or a new solenoid body is installed, the PCM must be reflashed with a new solenoid body strategy and identification data file.
    Refer to: Transmission Strategy Download (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, General Procedures).
