307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 09/27/2012

Output Shaft Speed (OSS) Sensor

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Main Control Valve Body (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).

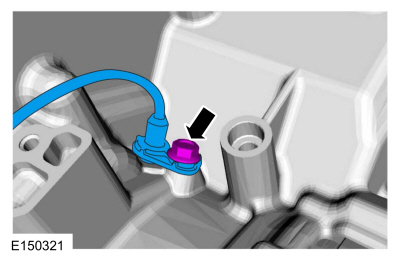

  1. Torque : 12 Nm

Installation

  1. To install, reverse the removal procedure.
