Halfshaft Seal LH

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

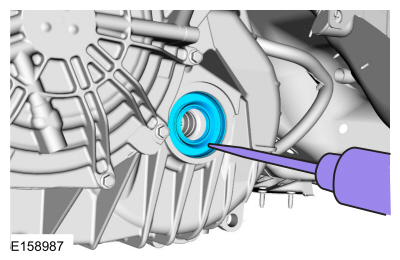

1. General Equipment : Punch

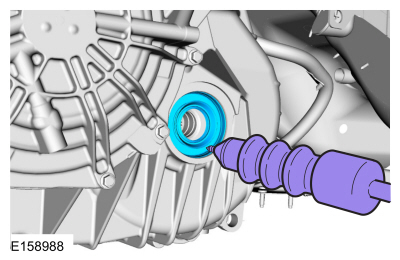

1. General Equipment : Puller

Installation

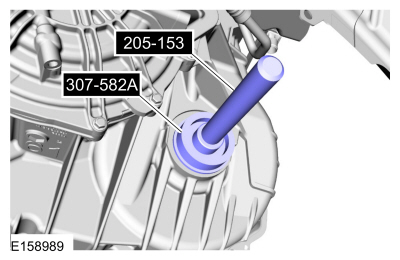

1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-582A Cover Axle Seal Installer

1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-582A Cover Axle Seal Installer

1. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).


1. Refer to: Transmission Fluid Drain and Refill (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, General Procedures).
