307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 02/25/2013

Transmission Range (TR) Sensor

Removal

  1. Refer to: Main Control Valve Body (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).

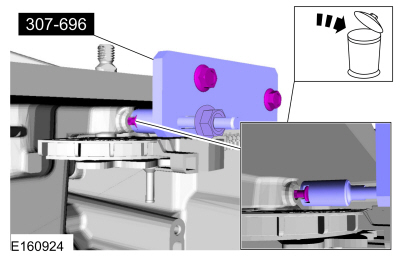

  1. Special Tool(s) : 307-696 Remover, TRS Retaining Pin

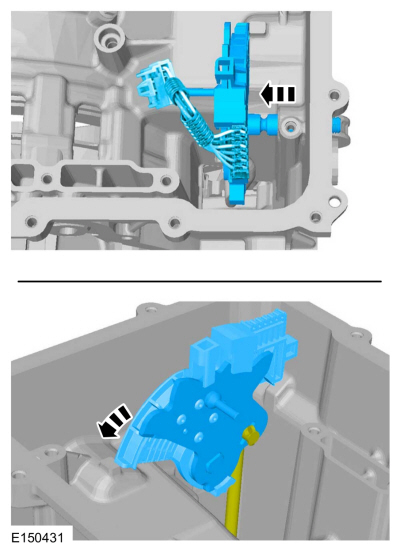

  1. NOTICE: Do not allow the park pawl actuator rod to slide out of the transmission case too far or it can become disengaged from the park pawl. Transmission removal and disassembly is required to install the park pawl actuator rod on the park pawl.

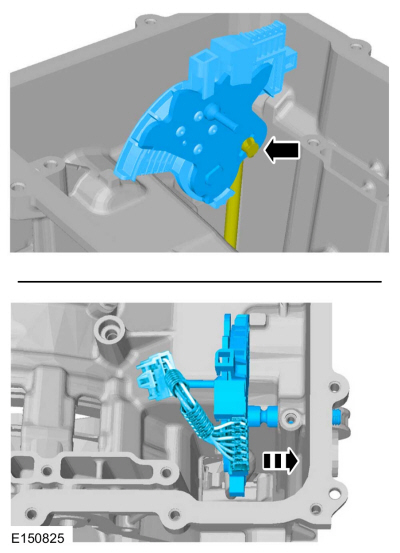

Installation

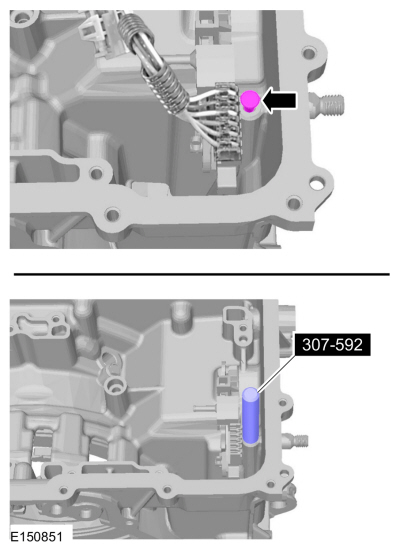

  1. Special Tool(s) : 307-592 Manual lever Retaining Pin Installer
  1. Refer to: Main Control Valve Body (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
  1. Refer to: Selector Lever Cable Adjustment (307-05A Automatic Transmission External Controls - Vehicles With: 6-Speed Automatic Transmission - 6F50, General Procedures).
