Transmission Fluid Drain and Refill

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

   Torque : 9 Nm

1. If the transmission was removed and disassembled, fill the transmission with 6.2L (6.5 qt) of clean transmission fluid. If the main control cover was removed, fill the transmission with 4.3L (4.5 qt) of clean transmission fluid.
   Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )

1. NOTE:

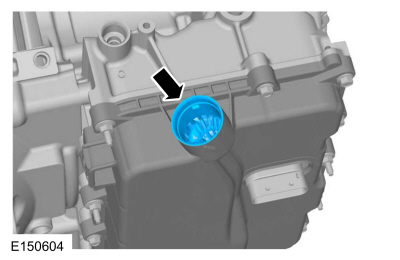

   • Start the engine and let it run for 3 minutes. Select the gears into each position and allow engagement for a minimum of ten seconds. Check the transmission fluid level by installing and removing the transmission fluid level indicator. When installing the transmission fluid level indicator, be sure it is seated and rotate it clockwise to the locked position. Adjust the transmission fluid level.
   1. Correct transmission fluid level at normal operating temperature 82°C-93°C (180°F-200°F).

   2. Low transmission fluid level.

   3. High transmission fluid level.
