Flexplate

Removal

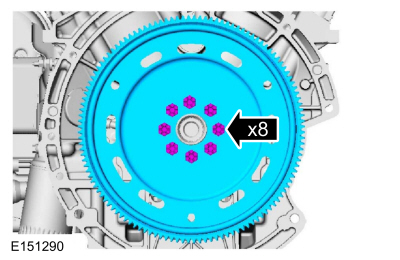

1. Refer to: Transmission - Vehicles Built Up To: 03-June-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
   Refer to: Transmission - Vehicles Built From: 20-May-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).


Installation

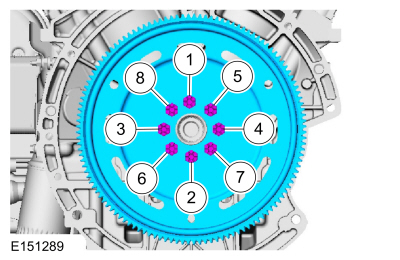

1. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

   Torque : 80 Nm

1. Refer to: Transmission - Vehicles Built Up To: 03-June-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).
   Refer to: Transmission - Vehicles Built From: 20-May-2013 (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Removal and Installation).


1. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
